Counterflow cooling machine for animal fee cooling
Documents
CHARACTERISTICS

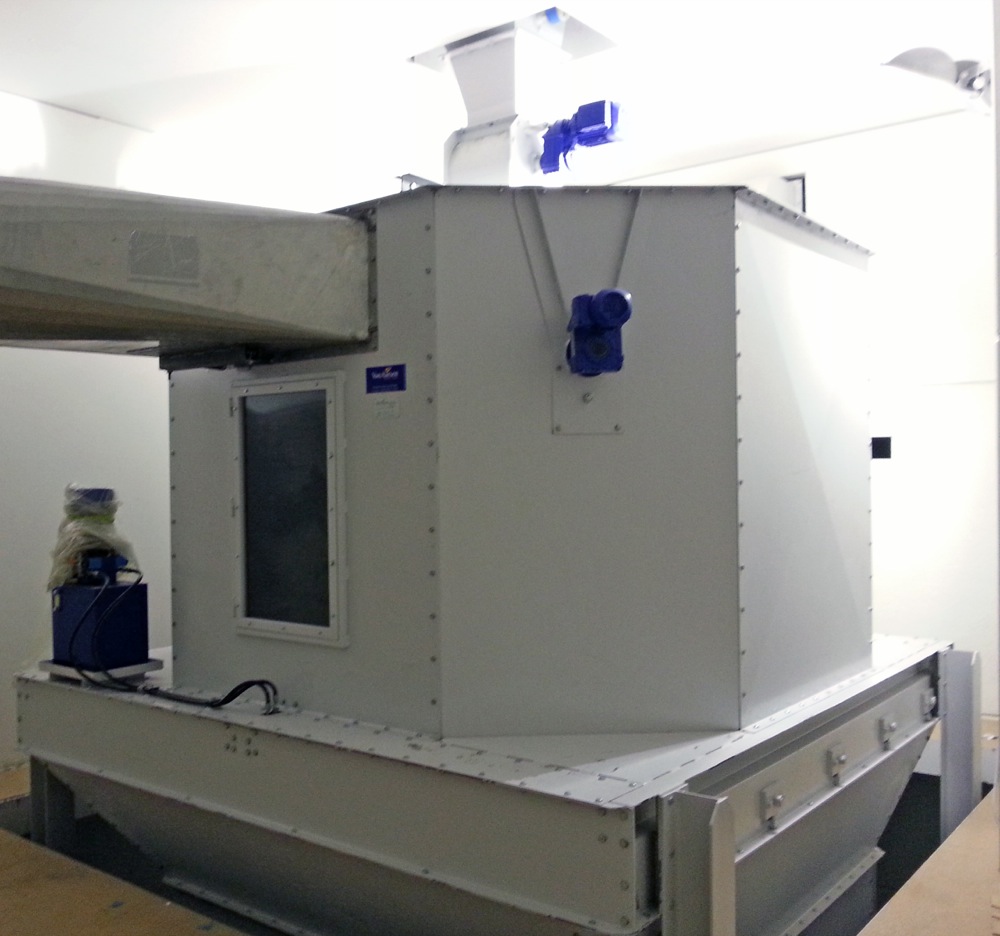

Counterflow cooling system cooling pellets after pelletizing
- The counterflow cooling principle was invented by Van Aarsen and has become a standard blue print, copied all over the world within the compound feed industry.
- The Van Aarsen counterflow cooling system is designed for cooling pellets after pelletizing back to ± 5°C above ambient air temperature.
- This is to achieve a good PDI, flow ability, protect against decay and minimize chemical and biochemical reactions.
Benefits
- Small foot print
- Low energy consumption because of low air volume.
- Minimum service down time.
- Continuous pellet discharge for optimal cooling process.
- Limited damaging of the product due to discharge mechanism.
- Complete emptying of the cooler, to minimize cross contamination and maximize hygienic operation.
- Optimal pellet moisture content.
- Optimal process control.
- Available and upgradable as double deck cooler, for quick product change-over.
- Robust design of discharge mechanism.
Features
- Inlet valve for continuous product flow and air lock.
- Ultrasonic continuous layer thickness measurement to ensure and/or control retention time in cooler.
- Automatic air flow control by motor-operated air valve to regulate air speed in cooler.
- Cooler bin walls and hood in stainless steel to avoid corrosion.
- Hydraulically operated discharge mechanism.
- Frequency controller for adjusting speed discharge mechanism.
- Octagonal construction for optimal filling of the cooler.
- Bin height configured for optimal (build in) height.
- Designed and constructed according to CE and ATEX safety regulations.
