Start /Products /Container warehouses for chemicals, hazardous substances /Container multi-level WSC type warehouses for active and passive storage of chemicals /Container multi-storey warehouses for chemicals WCS-F-E.1-60; WCF-F-E.D.3-60

Container multi-storey warehouses for chemicals WCS-F-E.1-60; WCF-F-E.D.3-60

Send enquiry

Container multi-storey warehouses for chemicals WCS-F-E.1-60; WCF-F-E.D.3-60

  • For barrels storing on the lattice floor.
  • Designed for passive storage of all hazard classes.
  • The self-ventilation system ensures efficient ventilation of the warehouse premises (0.4 x air exchange).
  • The ventilation holes are directly above the pallet and in the upper part are the ventilation holes.
  • Active storage with an additional EX fan is available for more efficient removal of hazardous vapors (5x air exchange).
  • Made of galvanized trapezoidal, painted sheets (additional service) RAL color.
  • Double door with cylindrical lock.
  • Container warehouse equipped with removable trap, made of 5 mm steel sheet, welded to WZ2.2, controlled in accordance with EN ISO571-1
  • The warehouse is equipped with a triple wall to ensure leakage and spillage into the bottom.
  • All construction is covered with high-quality anti-corrosion, water-resistant coating according to EN ISO 12949-C3.
  • Dibt certificate, Ü



Type Product code Product code Product code Product code Product code Product code Product code
Painted 124.220.160 124.220.260 124.222.100 124.220.360 124.221.160 124.221.260 124.220.360
Model WSC-F-E.1-60 WSC-F-E.2-60 WSC-F-E.2-100 WSC-F-E.3-60 WSC-F-D.1-60 WSC-F-D.2-60 WSC-F-D.3-60

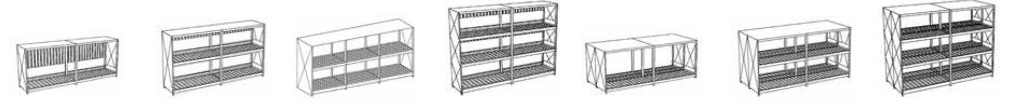

Number of rack levels 1 2 2 3 1 2 3
Spill bath capacity, L 2x450 2x450 3x450 2x650 4x450 4x450 4x650
200 L statinių kiekis ant grotelių, vnt. 20 40 60 60 40 80 120
200 L  of barrels on the chemical pallets, pcs. 16 32 48 48 32 64 96
200 L of barrels on the EURO pallets, pcs. 12 24 36 36 24 48 72
Outside dimensions LxWxH, mm 6200x1530x2175 6200x1530x3080 9270x1540x3080 6240x1530x4480 6200x2930x2200 6200x2930x3105 6240x2930x4505
Inner dimensions LxWxH, mm 3010x1300x1730 3010x1300x1250 3010x1300x1250 3010x1300x1250 3010x1300x1250 3010x1300x1250 3010x1300x1250



Download brochure
