Container multi-level storage for pallet storage WCS-F-E.2-40; WCS-F-E.3-80

Send enquiry

Container multi-level storage for pallet storage WCS-F-E.2-40; WCS-F-E.3-80

  • For passive storage of hazardous materials of all hazard classes on industrial or European pallets.
  • The self-ventilation system ensures efficient ventilation of the warehouse premises (0.4 x air exchange).
  • The ventilation holes are located directly above the pump casing and the ventilation holes on the top.
  • Active storage with an additional EX fan is available for more efficient removal of hazardous vapors (5x air exchange).
  • Made of galvanized trapezoidal, RAL painted sheets (additional services).
  • Double door with cylindrical lock.
  • Container warehouse with removable truss, made of 5 mm steel sheet, welded to WZ2.2 tightness, controlled in accordance with EN ISO571-1.
  • Warehouse with triple wall that protects against splashes, ensuring leakage and spillage into the bottom of the floor.
  • All construction is covered with high-quality anti-corrosion and waterproof coating according to EN ISO 12949-C3.
  • Dibt atestate, Ü.



Type Product code Product code Product code Product code Product code
With opening doors 124.230.240 124.230.340
With sliding doors - - 124.230.280 124.232.120 124.230.380
Model WSC-F-E.2-40 WSC-F-E.3-40 WSC-F-E.2-80 WSC-F-E.2-120 WSC-F-D.3-80

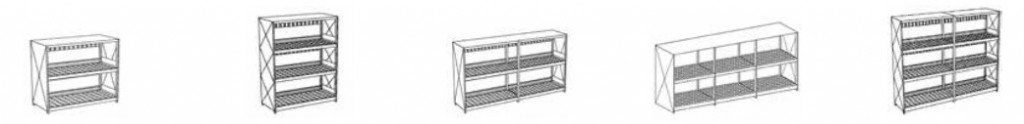

Number of rack levels 2 2 2 2 3
Spill bath capacity, L 550 800 2x550 3x550 2x800
200 L barrels on the chemical pallets, pcs. 24 36 48 72 72
200 L barrels on the Euro pallets, pcs. 16 24 32 48 48
Outside dimensions LxWxH, mm 4100x1450x3080 4100x1450x4480 8100x1530x3080 12100x1540x3080 8100x1530x4480
Inner dimensions LxWxH, mm 3900x1300x1250 3900x1300x1250 3900x133x1250 3090x1300x1250 3090x1300x1250



Download brochure
