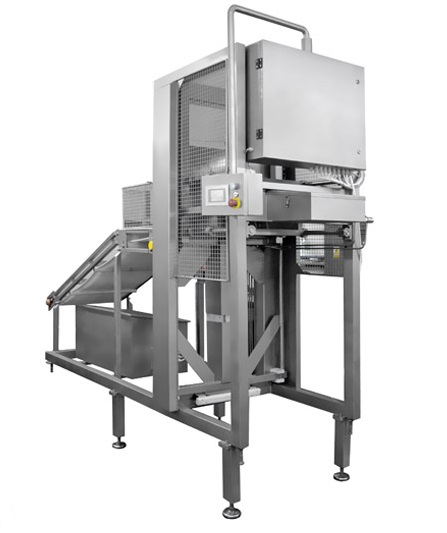

Cheese cube machine
Application:
- Slicer is used for cutting blocks of cheese with maximum dimensions:
- Width-400 mm, height-300 mm, and cheese in the shape of a cylinder with a maximum diameter 100 mm, for cube measuring 5x5x5 cm. T
- his allows, in turn, other devices to form a shavings. Used, among others for the production of pizzas, baguettes, cheese blocks.
Construction and operation:
- The design of the device is made of stainless steel.
The device consists of two units:
- Unit of conveyor feeding;
- Horizontal cutting section – transverse unit of knives, powered by a hydraulic cylinder;
- Vertical cutting section – guillotine powered by a hydraulic cylinder;
- Hydraulic system;
- Electrical control;
The device works automatically. Cycle of action:
- Conveyor moves the blocks of cheese with a preset distance (10 to 200 mm)
- Vertical cutting section cut from blocks of pre-programmed slice thickness
- Horizontal section cut transversely cut off slice into cubes 50x50x (10-200) mm
- Cheese cut into cubes falls to dump raw gutter.
- Back to Action 1
