ElegaBin activators BA, BAS for hopper or silos discharge

Bin activators BA, BAS for hopper or silos discharge

On order

Bin activators BA, BAS for hopper or silos discharge

BA and BAS Bin Activator is a device of tapered conical shape that, due to vibration, facilitates material flow from hoppers or silos

info@elega.lt Call

Documents

  • Download brochureFAILAS · 4.2 MBDownload

CHARACTERISTICS

Bin Activators - BAS, BA

Bin activator BA

  • The BA Bin Activator is a device of tapered conical shape that, due to vibration, facilitates material flow from hoppers or silos.
  • It consists:
    • of a seamless carbon or stainless steel cone
    • manufactured on a sheet metal lathe,
    • a seamless SINT engineering polymer seal with integrated upper and lower flange,
    • suspensions for connection with the silo cone,
    • as well as one or two electric OLI motovibrators.

Function

  • To fit the BA Bin Activator, the silo cone has to be shorter than usual, leaving a wide outlet section.
  • A flange supplied before or together with the Bin Activator is welded on the silo outlet cone on site.

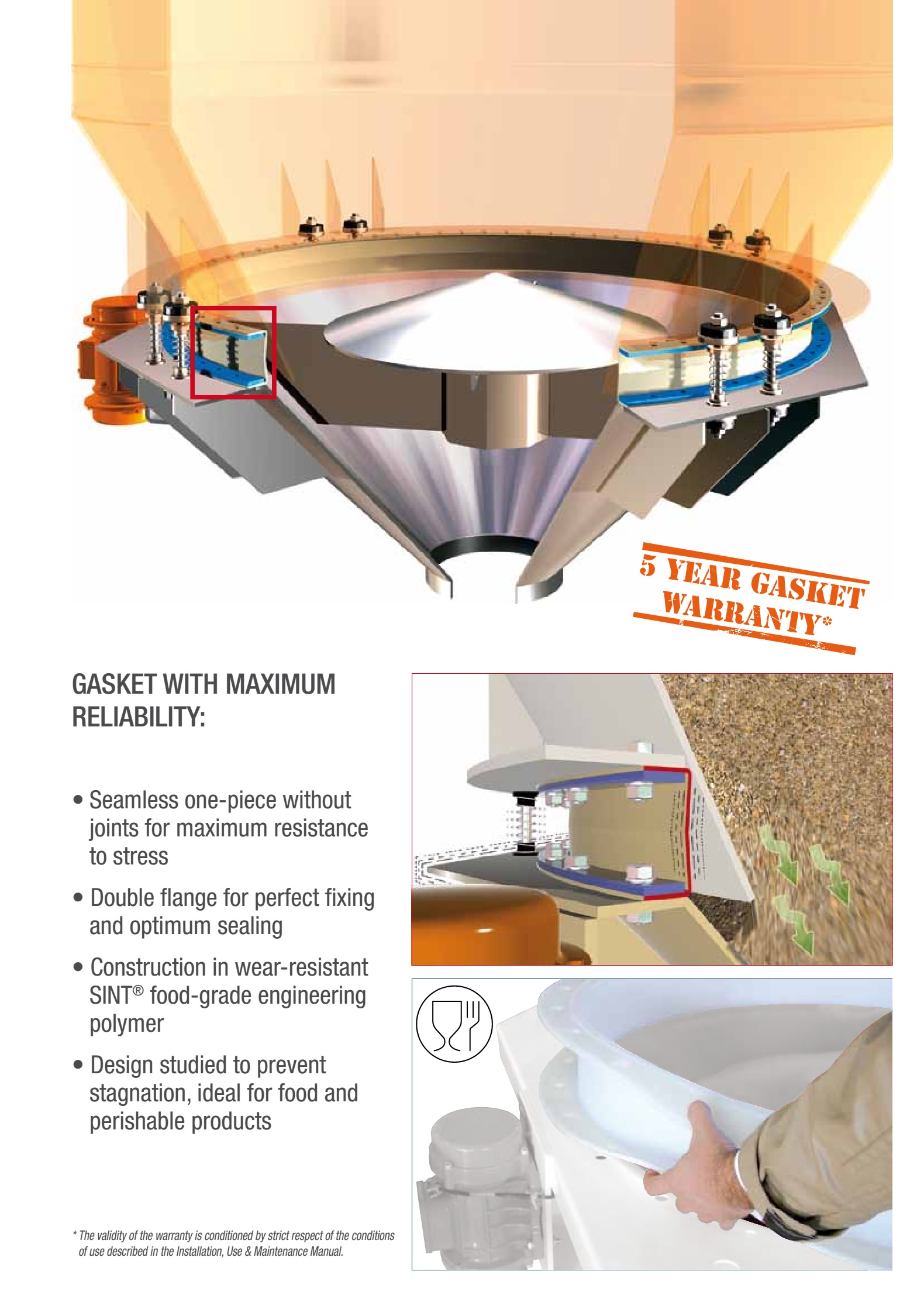

  • Special suspensions and a seamless, flanged SINT engineering polymer seal form a flexible connection between silo and Bin Activator.
  • One or two electric OLI motovibrators fitted on the unit generate vibration of the Bin Activator every time the feeding device beneath the silo is started for feeding material.
  • During operation the Bin Activator describes a gyratory movement which is transmitted to the material inside the silo.
  • The result is smooth material flow through the Bin Activator outlet into the connected feeder.
  • BA Bin Activators are used in various industrial applications to facilitate discharge of powdery or granular materials from a silo or hopper.
  • The use of this equipment ensures optimum feeding of the material according to a “mass flow” condition, thus avoiding bridging or rat holing phenomena.

Features

  • Q = 5 ~ 320 m3/h .
  • Range: Ø 400mm  ~ 3,000mm).
  • Material: carbon steel, 304L / 316L stainless steel.
  • Robust, compact design.
  • Range of seals (gaskets) including FDA-approved, food-grade version and high-temperature version.
  • Wide range of baffle plates in accordance with application.
  • Low power requirement.
  • Extra durable suspensions and seal (gasket).
  • 70% fewer welds than with traditional bin activators.
  • Seamless heavy-duty activator cone.

Bin activator BAS

  • The BAS Bin Activator is a device of half convex, half conical shape. Set in vibration it facilitates material flow from hoppers or silos.
  • It consists:
    • of a seamless carbon or stainless steel cone,
    • manufactured on a sheet metal lathe,
    • a seamless SINT engineering polymer seal with integrated upper and lower flange,
    • suspensions for connection of the Bin Activator with the silo,
    • as well as one or two OLI electric motovibrators.

Function

  • To fit the BAS Bin Activator, the silo cone has to be shorter than usual, leaving a wide outlet section.
  • A flange supplied before or together with the Bin Activator is welded on the silo outlet on site.
  • Special suspensions and a seamless flanged SINT engineering polymer seal form a flexible connection between silo and Bin Activator.
  • One or two OLI electric motovibrators fitted on the unit generate vibration of the Bin Activator every time the feeding device beneath the silo is started for material extraction.
  • During operation the Bin Activator describes a gyratory movement which is transmitted to the material inside the silo.
  • The result is smooth material flow through the Bin Activator outlet into the connected feeder.
  • The BAS Bin Activator suits certain applications, especially in the flour milling industry, to facilitate discharging of powdery or granular materials from silos or hoppers.
  • The use of this equipment ensures optimum feeding of the material causing a “mass flow” condition inside the silo, thus avoiding bridging or rat holing phenomena.

Features

  • Range: Ø 600mm  ~ 2,100mm).
  • Material: carbon steel, 304L / 316L stainless steel.
  • Robust, compact design.
  • Range of seals (gaskets) including FDA-approved, food-grade version and high-temperature version.
  • Wide range of baffle plates in accordance with application.
