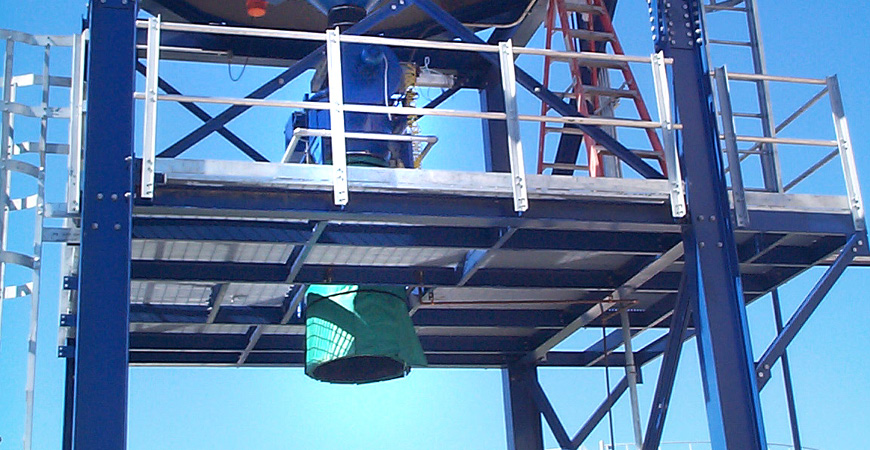

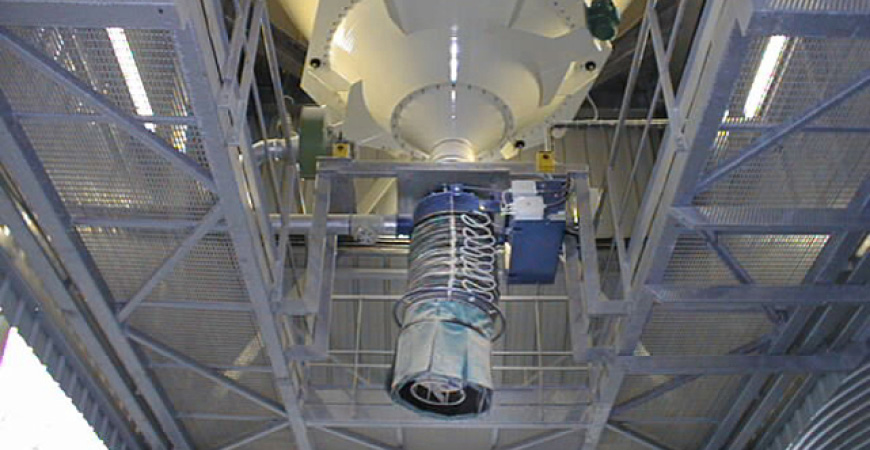

BELLOJET ZC Open Truck Loading Bellows With Integrated Dust Collector
Documents
CHARACTERISTICS
BELLOJET ZC Open Truck Loading Bellows With Integrated Dust Collector
- BELLOJET ZC Loading Bellows are used for efficient dust controlled discharging of dry, dusty bulk solids into open lorries / trucks.
- The spouts are provided with inner tapered cones to contain the flow of material and an outer double bellows to provide for dust removal.
- First the Loading Bellows is lowered from stand-by position towards the truck bed.
- As soon as the bellows outlet feet touch the bed, a slack cable switch mounted outside the transmission box stops lowering of the bellows.
- The limit switch inside the transmission box stops both full extension and contraction of the bellows.
- Material loading starts by opening the silo outlet valve.
- During filling of the truck the filter fan continuously sucks dust through the external bellows into the integrated filter cartridges in the upper section of the unit exhausting excess air.
- A level sensor mounted under the dust skirt makes the loading bellows lift progressively maintaining the skirt constantly in contact with the stockpile.
- Contraction of the bellows back to stand-by position is started by the operator via remote control.
- Once the bellows is fully contracted, the cable limit switch inside the transmission box stops operation.
- The preset after shut-down cleaning cycle now provides for additional pulse-jet cleaning of the filter cartridges for another ten minutes.
Features
- Inlet diameter: 300 mm (12 in).
- Maximum throughput rate: 250 m3/h (147 cfm).
- Operating temperature: -40 ~ 150 °C (-40 ~ 500 °F).
- Filter surface: 10 m2 (108 sq ft).
Benefits
- Built-in dust filter reduces dust emission during loading operation.
Options
- ATEX-version available.
- Various chute and fabrication materials available according to material handled.
- Control panel with remote control.
- Available with different types of level indicators.
- Outlet vibrator.
