ElegaBatch-Type Single Shaft Mixers-WBH, capacity 30 - 25000 L

Batch-Type Single Shaft Mixers-WBH, capacity 30 - 25000 L

Code: 30
On order

Batch-Type Single Shaft Mixers-WBH, capacity 30 - 25000 L

info@elega.lt Call

Documents

  • Download brochureFAILAS · 974 KBDownload

CHARACTERISTICS

Batch-Type Single Shaft Mixers-WBH, capacity 30 - 25000 L

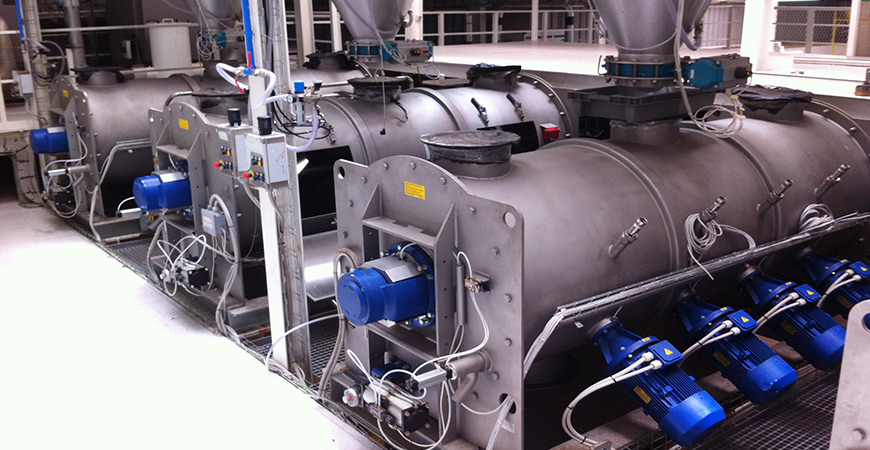

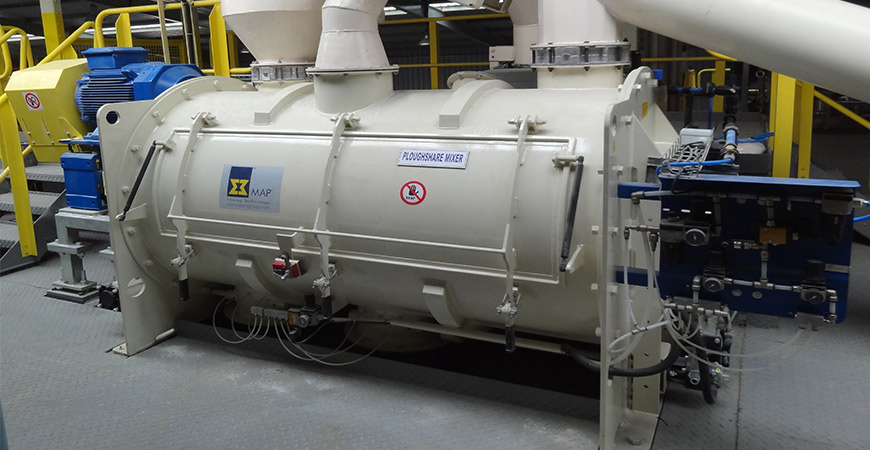

  • WBH Horizontal Single Shaft Batch Mixers consist of a mixing drum vessel with an inlet, an outlet with discharge valve and a venting spout, a full material mixing shaft, two drum closing end plates that carry flanged end bearing assemblies complete with integrated air or gas-purged shaft seals, and a drive unit complete with power transmission.
  • Ploughshare or inclined blade-type shovel tools rotate as mixing tools in a special arrangement on the mixer shaft in a horizontal, cylindrical drum vessel.
  • The result is a turbulence in the mix that constantly involves all the product particles in the mixing process.
  • The formation of dead spots or slow-movement zones in the mixing drum is prevented ensuring precise mixing.
  • In some cases, to obtain the desired mixing effect, separately driven high-speed choppers can be installed.

Function

  • The WBH Horizontal Single Shaft Batch Mixer is based on the principle of mechanical fluidisation of the product.
  • The particular shape, position and rotation speed of the mixing tools, creates a centrifugal vortex motion which allows the materials to be projected in a three-dimensional way and to merge with each other.
  • This ensures that ingredients with different particle size and bulk density are perfectly blended and mixed with high precision within the shortest possible time.
  • WBH Batch-type Mixers are used for mixing dry powders, granules or short fibres, for moistening, agglomerating or granulating the same materials, or for mixing liquids or low viscosity pastes.

Features

  • Capacity: 10 to 20,000 litres per batch.
  • Mixing ratio: 1/100,000.
  • Variation coefficient (CV): 3 ~ 5%.
  • Possibility of adding up to 20% of liquid.
  • End bearing assemblies with various types of air or nitrogen-purged shaft seals or grease sealing.
  • Heavy-duty mixing chamber manufactured from carbon steel, anti-wear steel or 304L / 316L stainless steel.
  • Stainless steel surface finishing: grit silking, mirror polishing, glass bead blasting.
  • Wide range of mixing tools (boxed ploughshare, toothed ploughshare, blade, toothed blade-type) available, with anti-wear coating on request.

Benefits

  • No product deterioration or damage.
  • Low maintenance.
  • Durable machine.
  • Power rating adapted to application.
  • Easy cleaning and access to all internal parts of the mixer.
  • Mixing know-how and test facilities.

Options

  1. Special anti-wear surface treatment (anti-wear liner, easily replaceable wear-resistant coating tiles, ceramic liner, Teflon liner, stainless steel mesh).
  2. High-speed choppers.
  3. Liquid injection device.
  4. Pneumatic sampling device.
  5. Pneumatic control panel.
  6. Heating / cooling jacketed mixing chamber.
  7. PT 100 temperature probe on jacketed mixing chamber.
