Aluminium profile SLOT10 45x180mm
Documents
CHARACTERISTICS

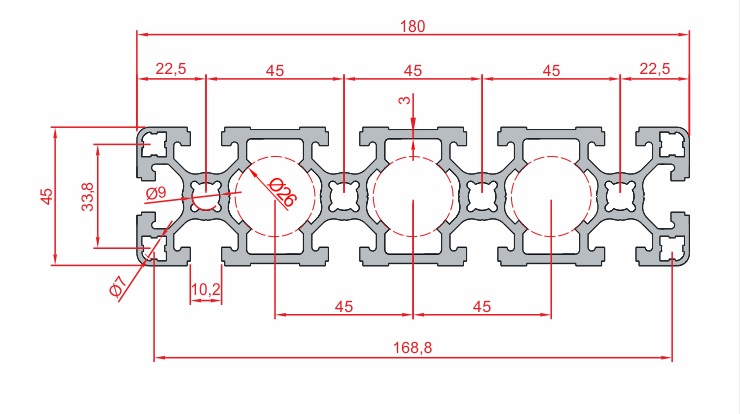

Aluminium profile SLOT10 45x180 mm
-
It is one of the ideally preferred profile series for resistance required machine skeletons, side chassis and strong physical structures.
-
Also it is produced as to be mounted with, 3 centers and 26 mm diameter bearing those provide sliding guidance feature with its design.
-
Profiles are made of special aluminum, which is also known as the 6063.
-
Profiles surface is coated with the ELOXAL, which is resistant to corrosion.
-
It should not be primed or painted, such as steel structures.
Technical data:
- dimensions: 45x180 mm;
- aluminium type: 6063;
- one profile length: 6000 mm;
- Ix : 74,0 cm4;
- Iy : 56,7 cm4;
- Wx: 83,0 cm3;
- Wy: 25,2 cm3;
- the relative weight: 6.77 kg / m.
