90 min fire resistant 2 door cabinet for 60 L barrels, FAS 90-900-160 GR
CHARACTERISTICS

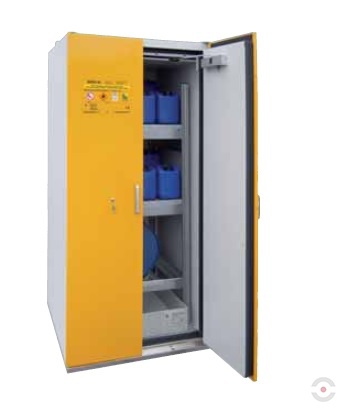

90 min fire resistant 2 door cabinet for 60 L barrels FAS 90-900-160 GR
- FAS 90-900-160 GR Code: 104.841.120. Level 1 for a 60 l barrel + 2 shelves for smaller containers.
- FAS 90-900-KGGR. Code: 104.841.130. 3 shelves for smaller containers.
- FAS 90-900-160 GR is intended for horizontal storage of 60 L drums and smaller containers (2 shelves) containing flammable (hazardous) materials.
- FAS 90-900-KGGR is intended for the storage of smaller containers (3 shelves) containing flammable (hazardous) materials.
- Fire resistance class 90 minutes, reduces fire risk, protects personnel and property.
- Conforms to EN14470-1.
- Made of WHG-compliant sheet steel, 3 mm thick, powder coated, with 2 hinged doors and a 67-liter sewage collection tank.
- The body is made of sheet steel, powder-coated in light gray RAL 7035.
- Inside is covered with HPL laminate.
- The yellow RAL 1007 pneumatic door with no power supply makes it easier to open and close.
- The door leaf opening system is included as standard so you can insert and remove containers conveniently and safely.
- The cabinet is equipped with a temperature control mechanism, which guarantees automatic door closing in the event of fire.
- The self-venting system ensures efficient removal of hazardous fumes (optional fan for connection via DN 80 vent connection on top of cabinet).
- Galvanized shelves for barrels and smaller containers, adjustable every 25 mm.
- Maximum shelf load 200 kg.
- Grate pallets are available as an option to store additional small containers.
- Outside dimensions W x H x H, mm: 900 x 900 x 1935.
- Inside dimensions W x H x H, mm: 797 x 735 x 1580.
- Weight 530 kg.
- Complies with EN14470-1, DIN, TRbF20 L / ISO3864 standards.
- 1 spill collection tank - 67 l.
